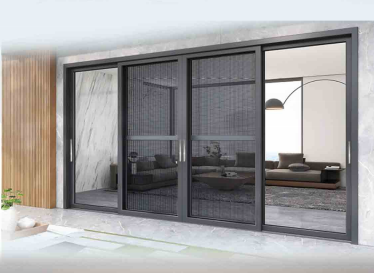

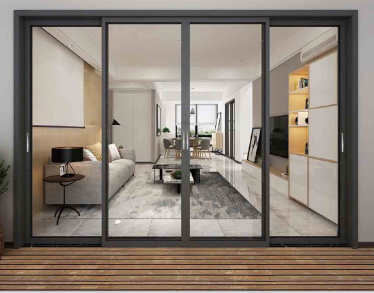

Outdoor Sliding Door

Design & Structure

-From Narrow Frame Series to Heavy Duty Series

-Frame Options: 108mm-197mm thickness for style/function needs

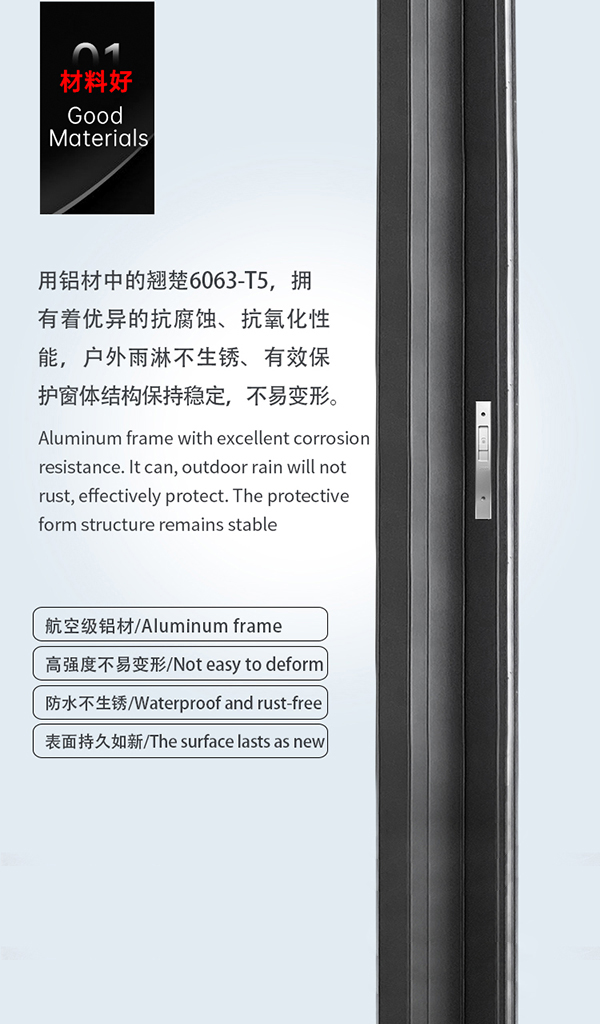

-Material: Aircraft-grade aluminum (1.4mm-5.0mm)

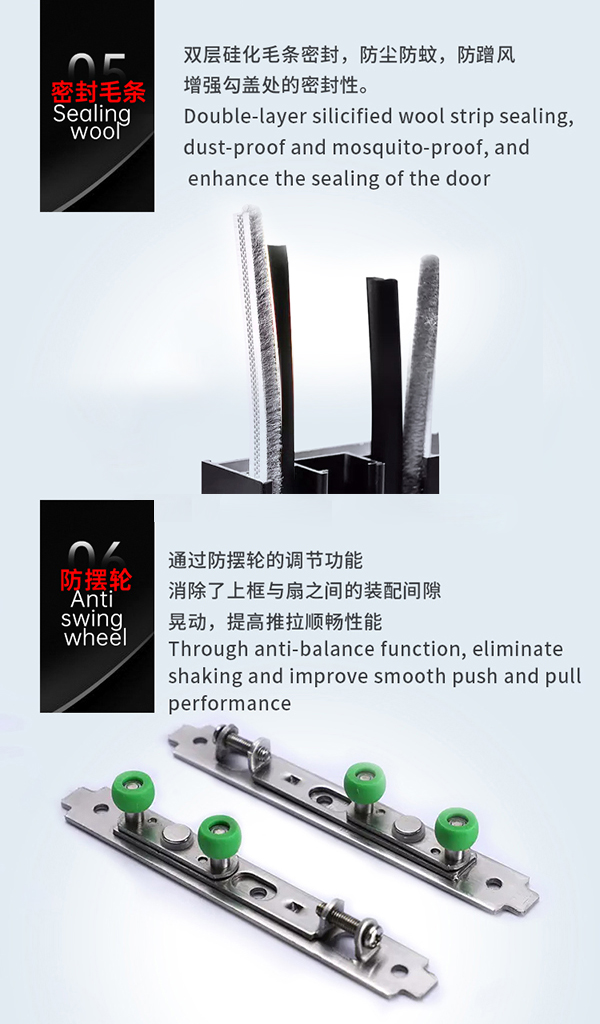

-Sealing: Triple-layer (narrow: basic; wide: advanced drainage)

-Track: Slim (80kg) or wide (200kg+) capacity

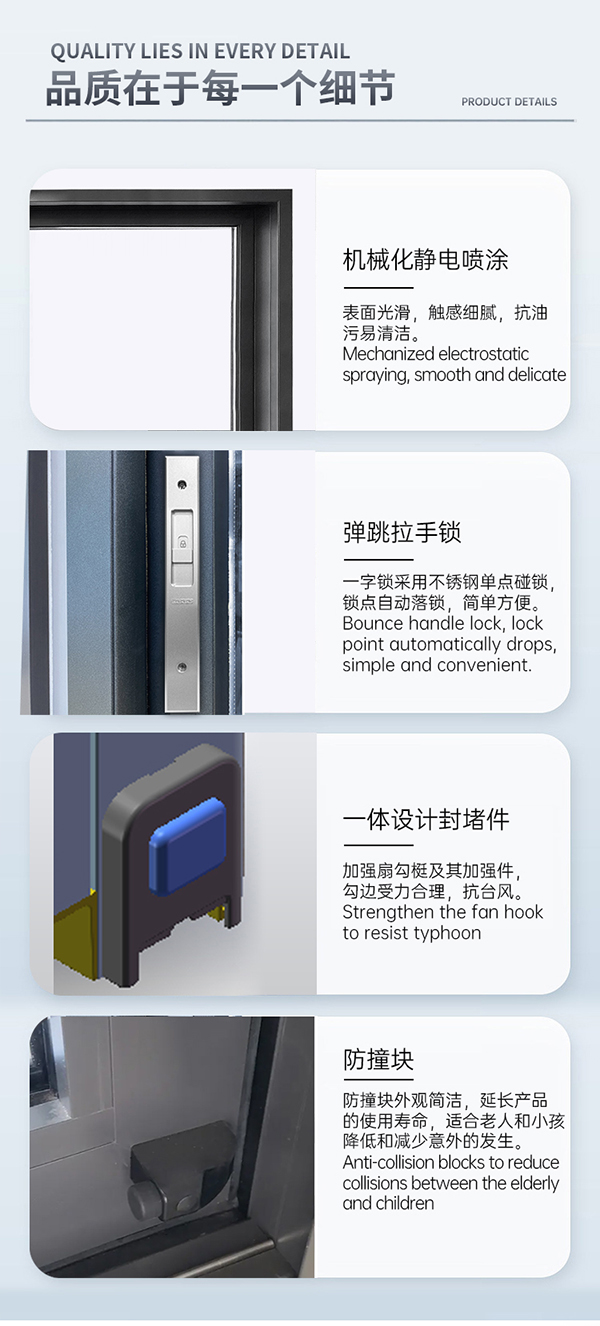

-Locking: Single-point or multi-point

Glass Option:

Single Tempered Glass: 5mm, 6mm, 8mm, 10mm….

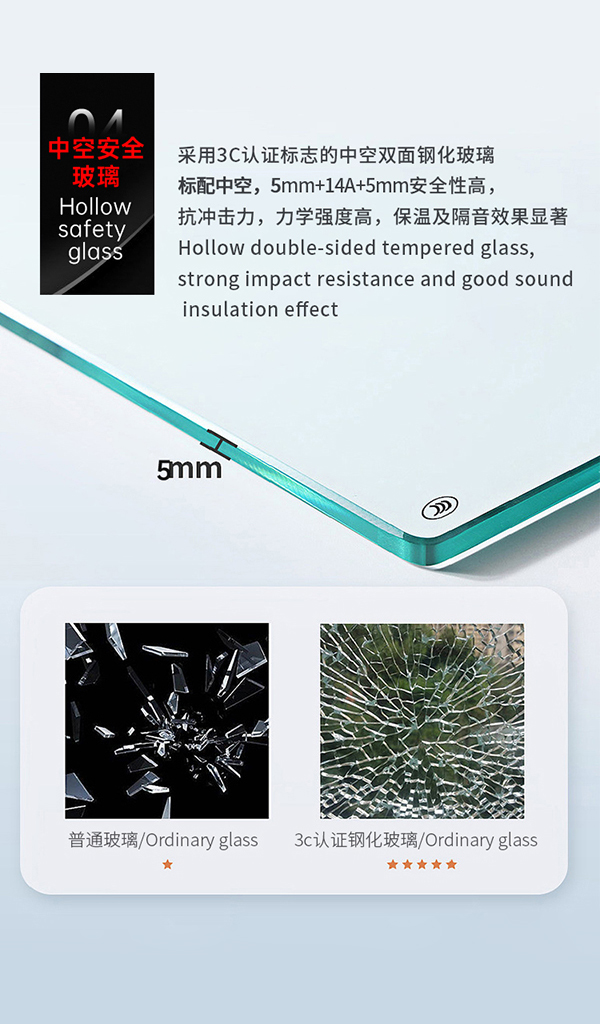

Double Tempered Glass: 5mm+20Argon+5mm(Standard)

Tempered Laminated Glass: 5mm+0.76pvb+5mm(Standard)

Triple Toughened Glass: 5mm+12Argon+5mm+12Argon+5mm(Standard)

Glass Pattern: Ripple glass, Fluted glass, Obscured glass, Wire glass, Coated Glass, etc.

Screen Option:

Screen Types: Stainless Steel Mesh, Fiber Mesh, Retractable Screen, Rolling Mesh

Fixed Screen is easy installation and removal

In-swing Screen can help you enjoy nature and keep the bugs out

Rolling Screen let you enjoy an unobstructed view when rolled up.

Color & Coating Options

Standard Color: Star Grey, Star Brown

Custom Color: Any Color on Color Atla

Hardwares&Accessories Options

Hardware Brand: HAOYA Custom

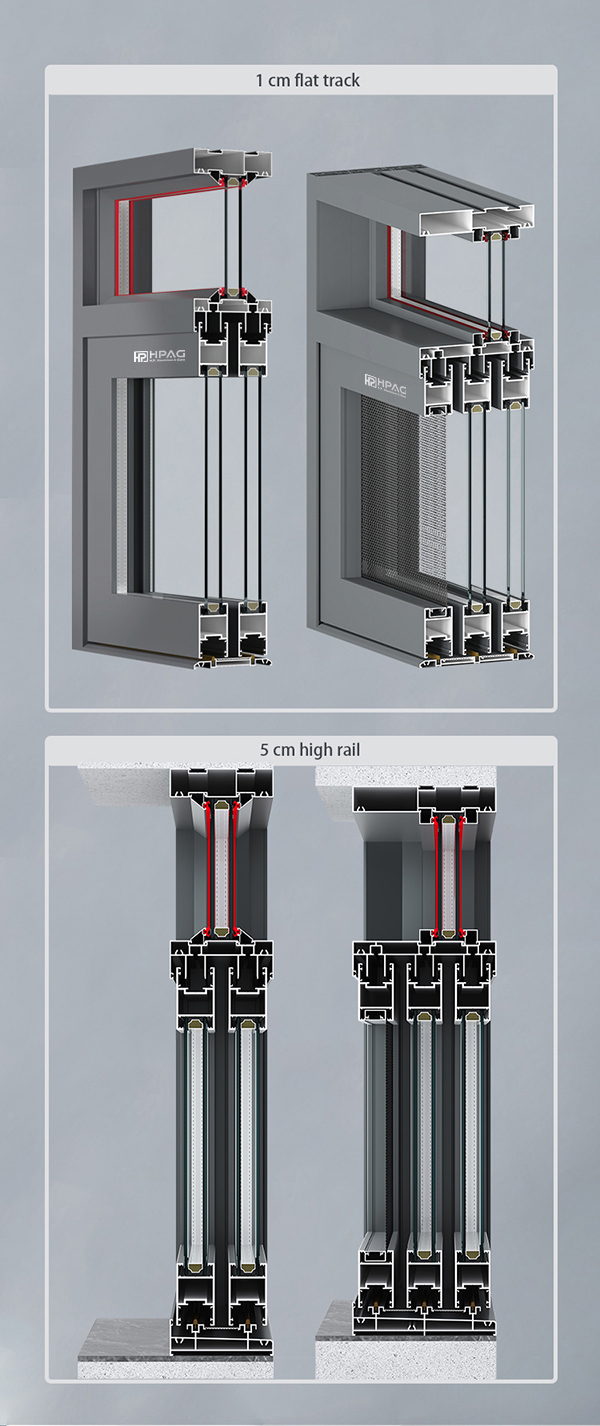

Rail Types: High Rail, Flush Rail, Invisible Floating Rail, Conceal Rail

Customization Options

- Glass color, and style available upon request.

- Aluminum frame color can be customized to match interior aesthetics.

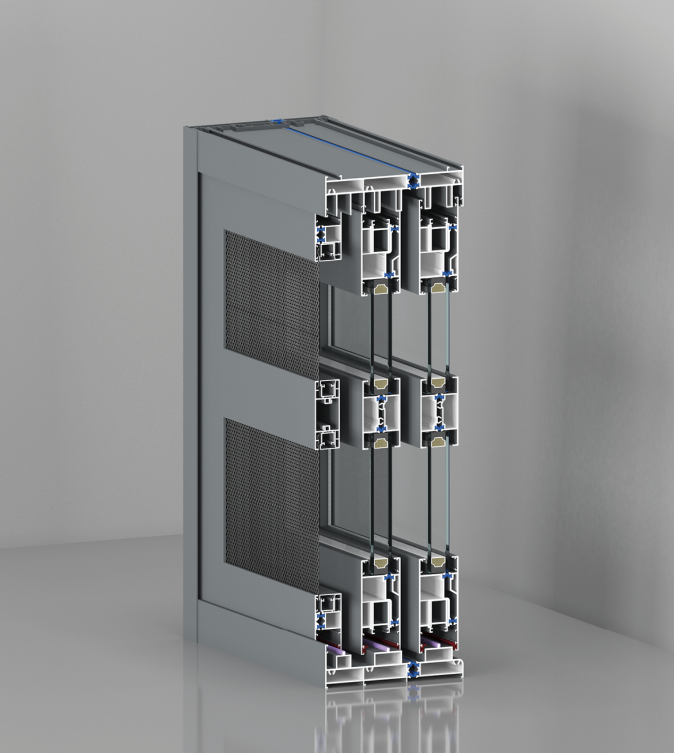

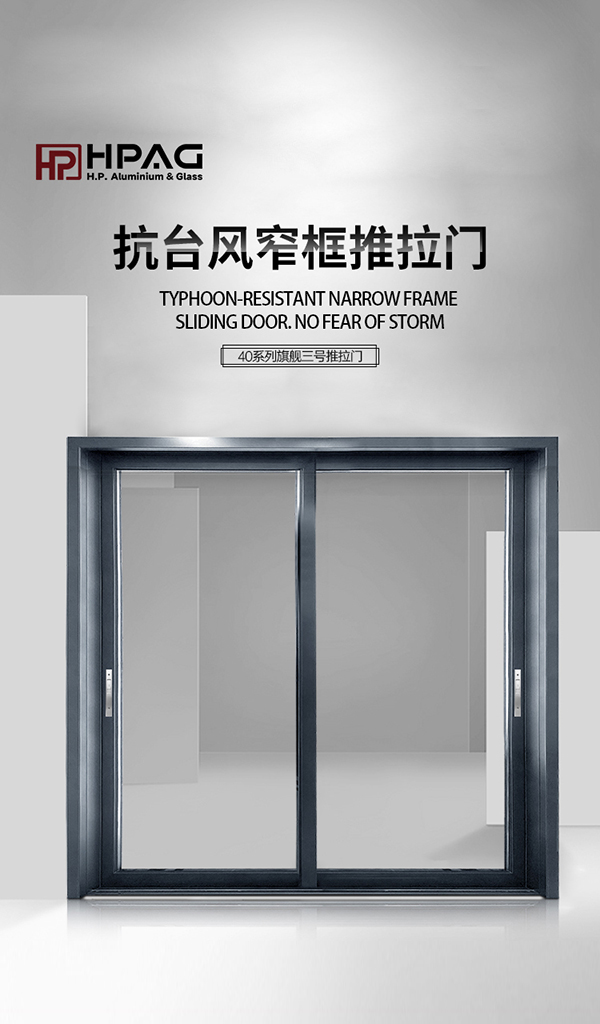

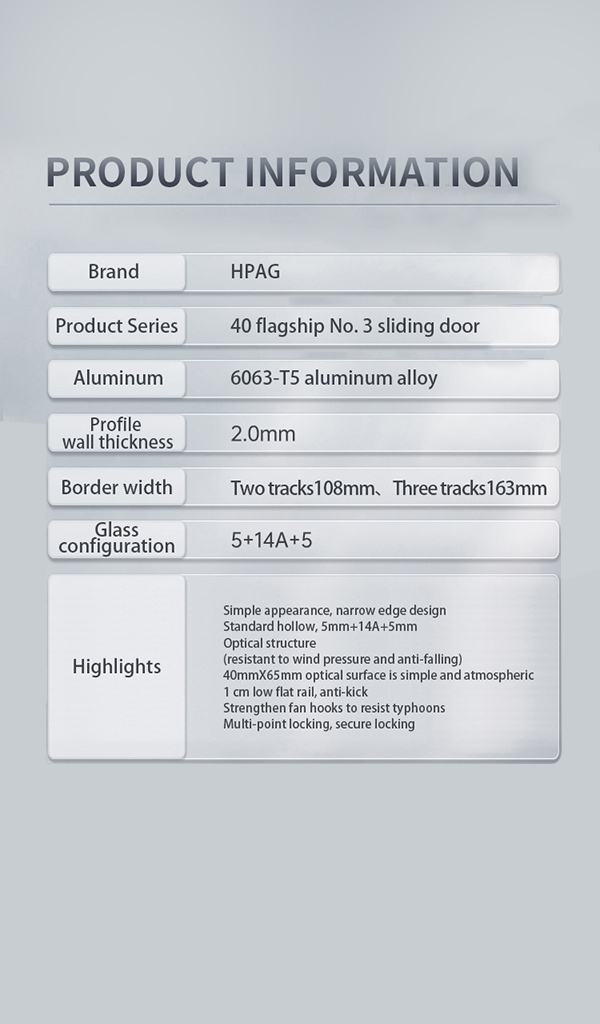

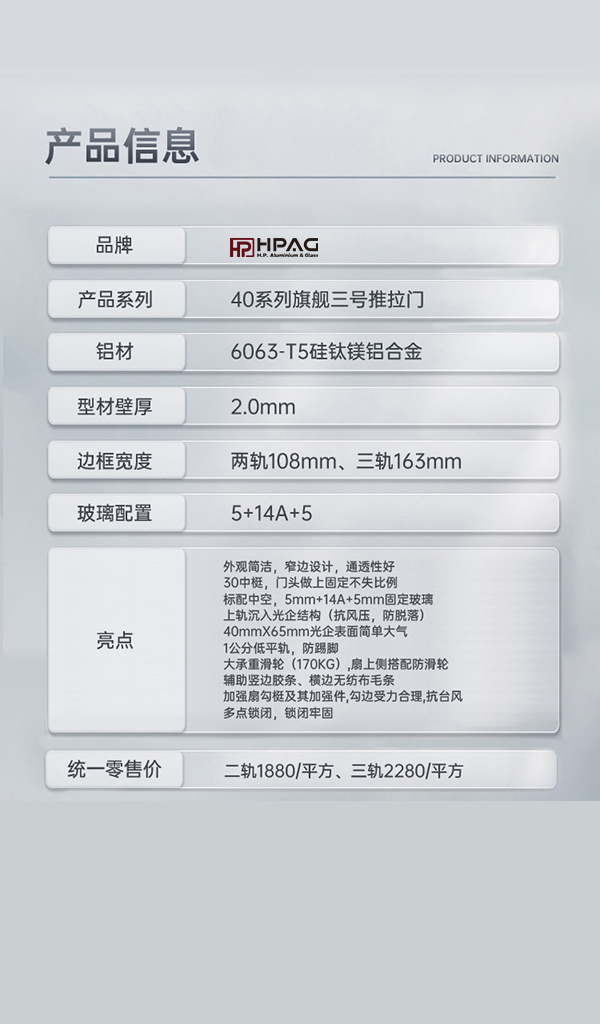

40 Series (No.3 Series)

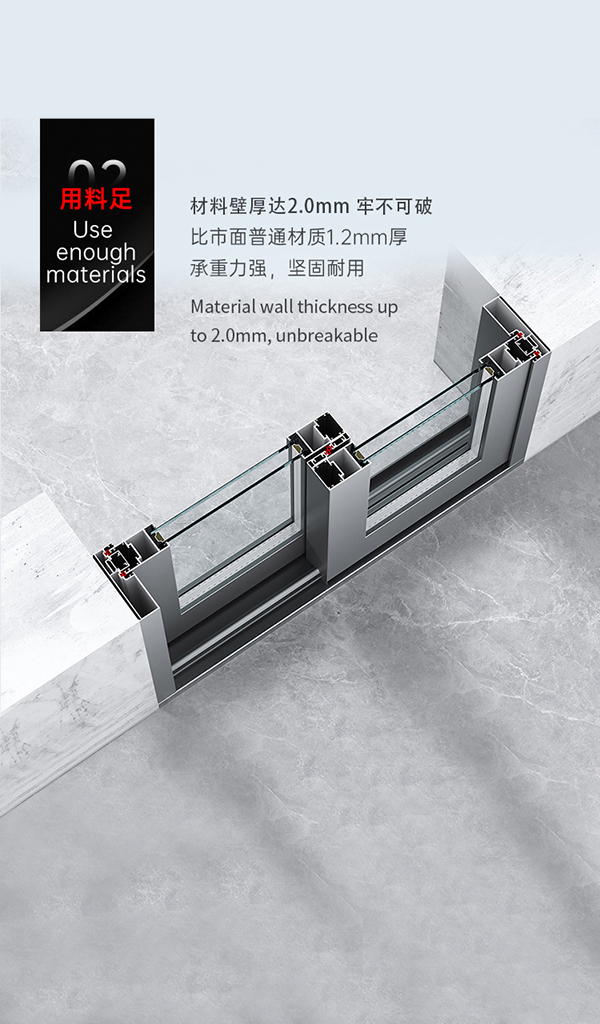

-Aluminum Thickness:2.0mm

-Three Rails: 2 Panels+ 1 Mesh, 3 Panels

-Thermal Break System

50 Series (50*110)

-Aluminum Thickness:3.0mm

-Three Rails: 2 Panels+ 1 Mesh, 3 Panels

-Thermal Break System

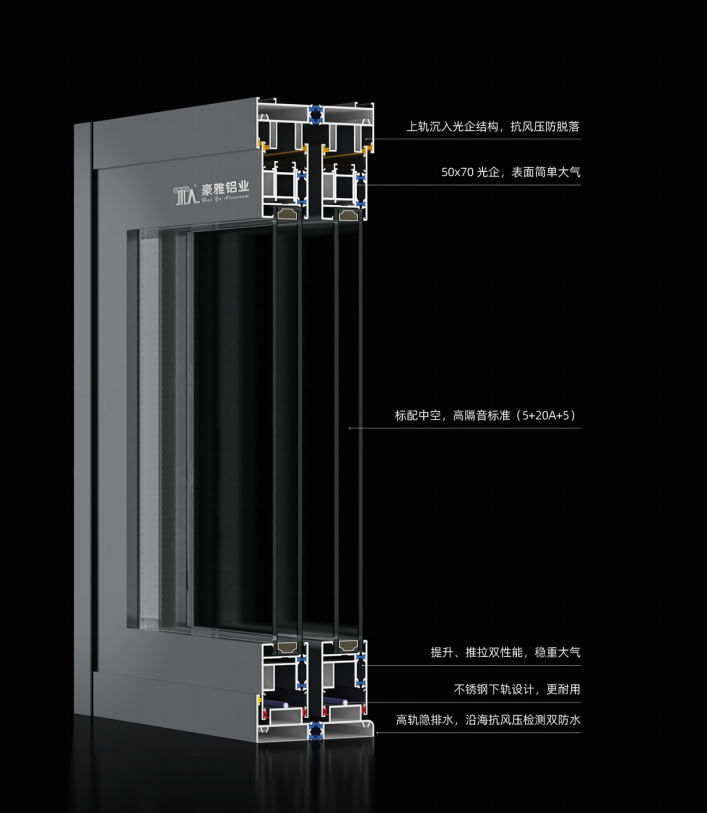

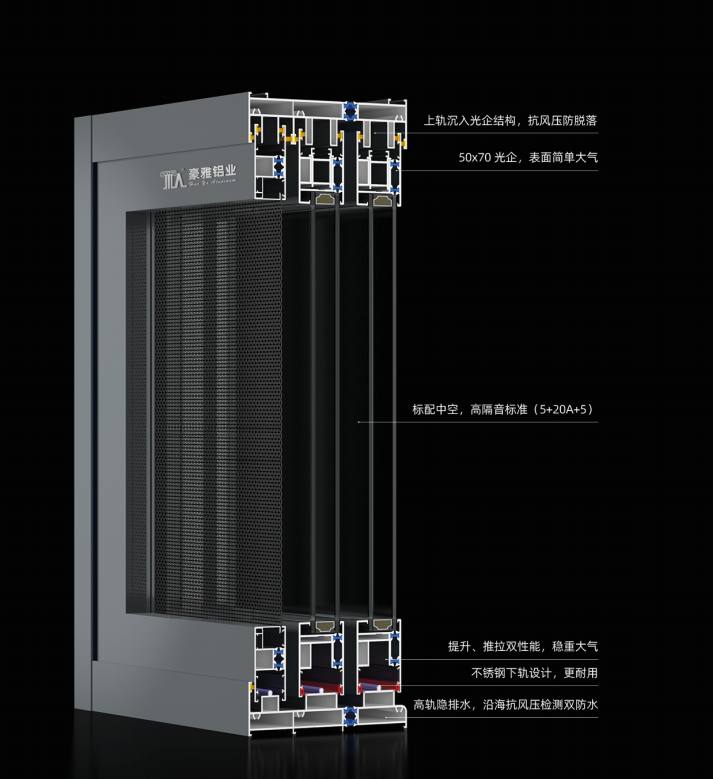

50 Series (50*70)

-Aluminum Thickness:2.0mm

-Three Rails: 2 Panels+ 1 Mesh, 3 Panels

-Thermal Break System
