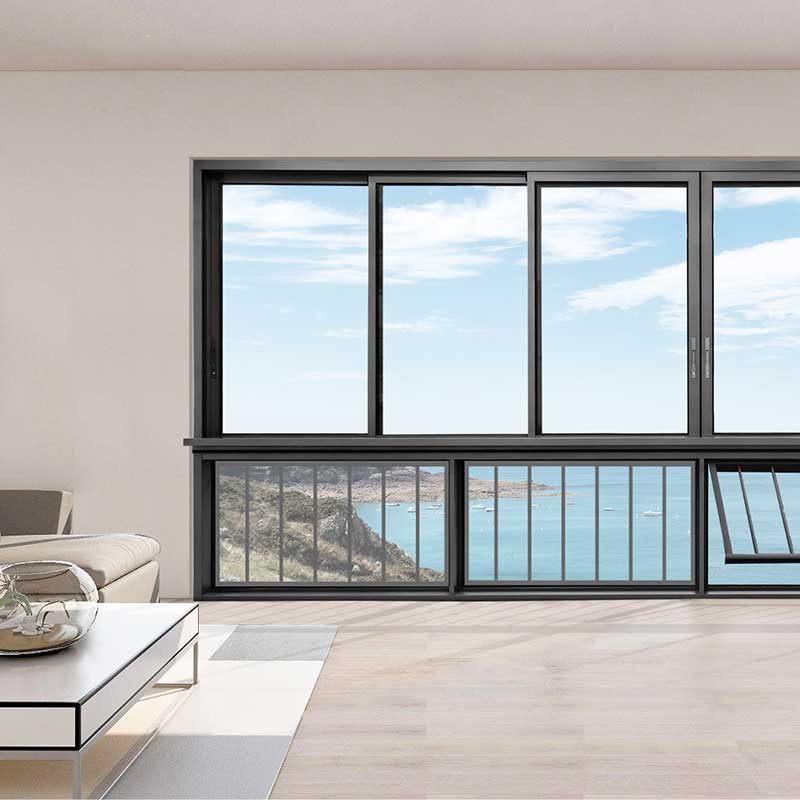

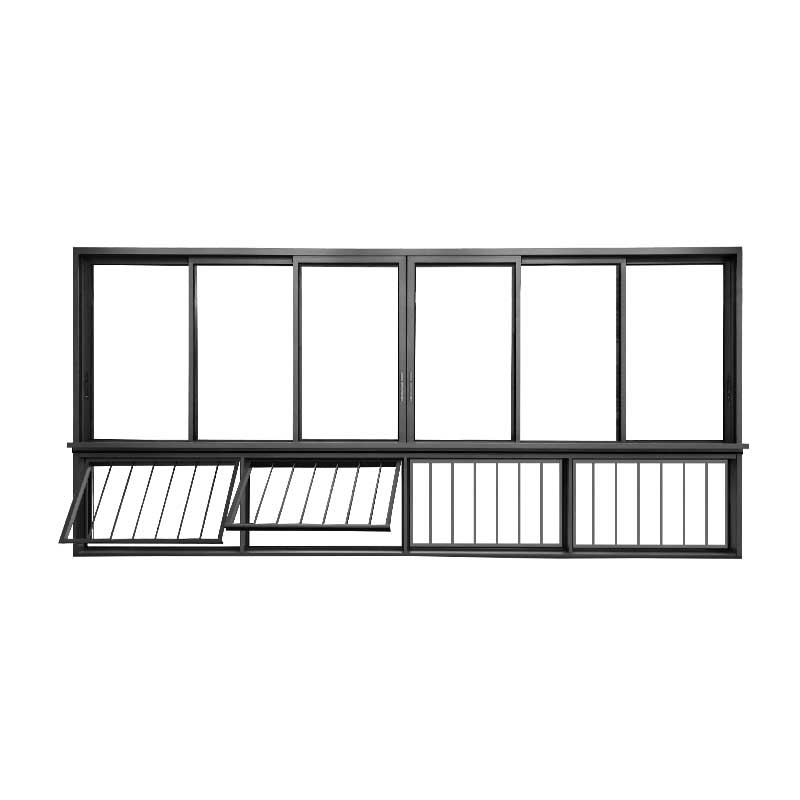

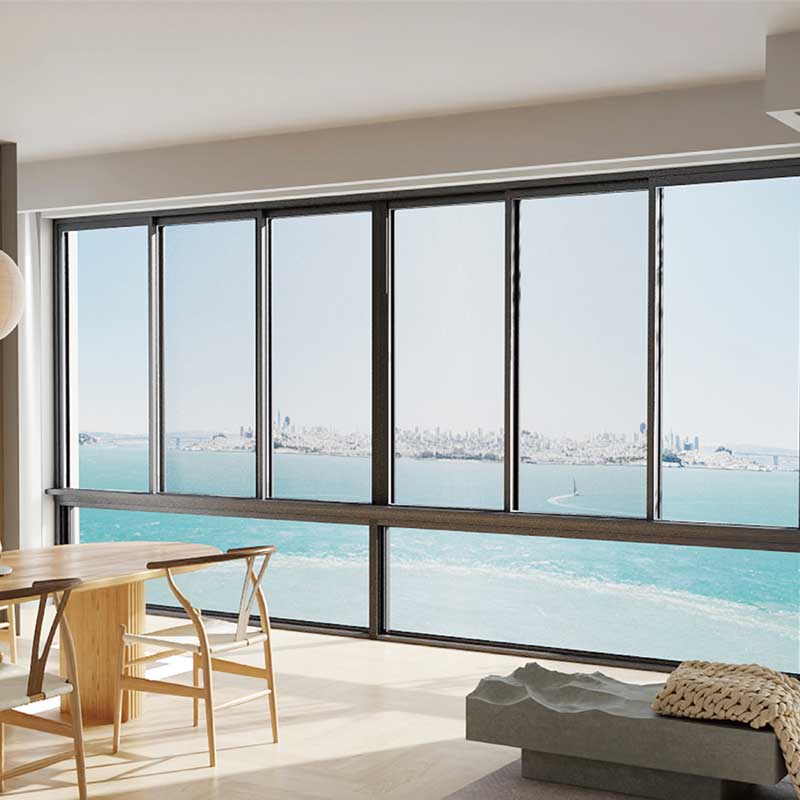

Aluminum 5 Track Sliding Window

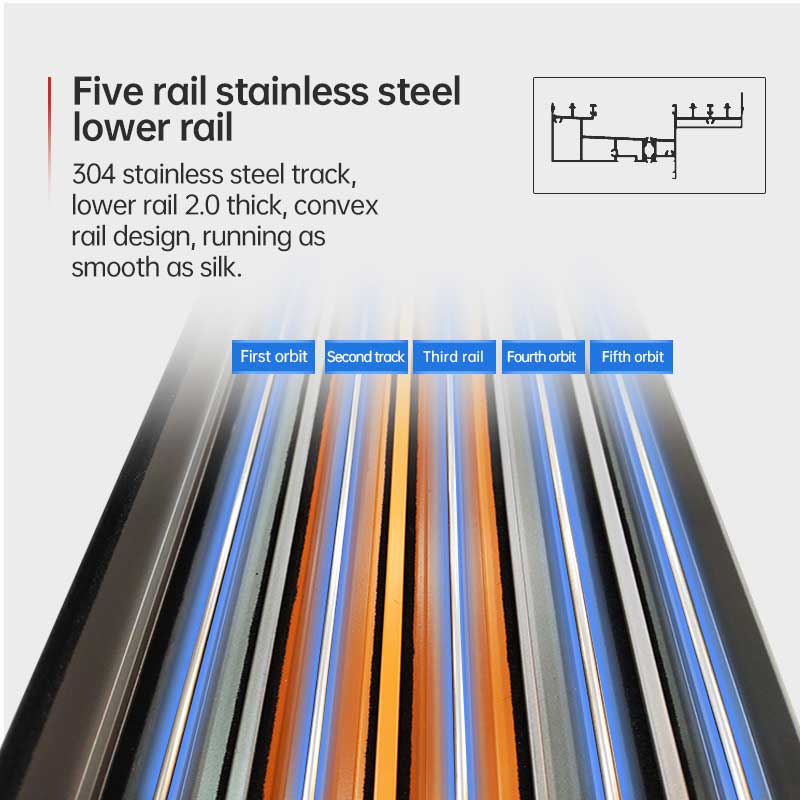

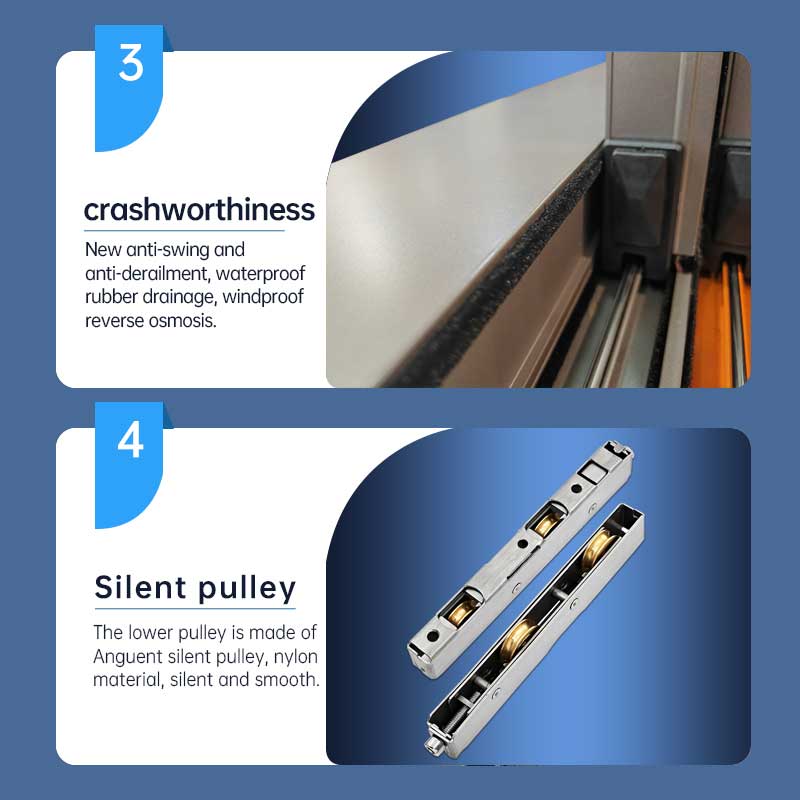

Haoya Aluminum introduces the Hao Yue195 Series Aluminum 5 Track Sliding Window, a pinnacle of resilience against typhoons and explosive rainfall, boasting high water-tightness and air-tightness. With its golden ratio aesthetics and minimalist hooked design, complemented by a large pressure line, this window achieves superior airtightness through multi-seal technology. Crafted from premium 6063 aerospace-grade aluminum alloy with a standard 2.0mm thickness and 195mm width, it delivers exceptional wind resistance and anti-distortion capabilities. The 5-track stainless steel lower rail ensures durability, featuring a 304# stainless steel track, 2.0mm thick, and a convex rail design for smooth, noise-free operation. The sliding rollers employ high-quality nylon for silent and wind-resistant functionality, with anti-leakage design and an embedded stainless steel lower rail for enhanced durability.

Incorporating a thermal break chamber design for soundproofing, heat insulation, and energy efficiency, the vertical isotherm design creates an effective thermal barrier, reducing overall energy consumption. The window's advanced sealing includes a 60mm frame for the screen, providing a high-end and spacious appearance. Standard features include a high soundproofing rating of 5+14A+5, utilizing a black hollow aluminum strip for effective sound isolation with double-layer 3C certified anti-collision tempered glass. The 304 stainless steel mesh with a thickness of 0.6mm ensures durability and advanced functions such as mosquito resistance and dust prevention.

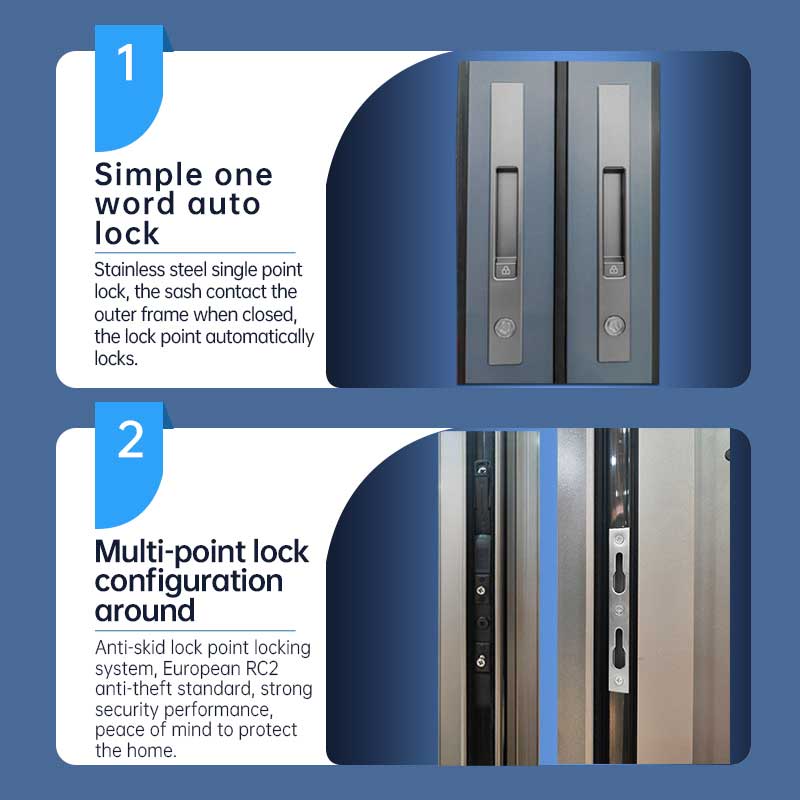

The innovative 5-point lock system with a stainless steel single-point touch lock enhances security, while the child-proof lock core adds an extra layer of safety. The one-word lock, equipped with stainless steel single-point touch locks, automatically engages when the window is closed, providing a simple and convenient locking mechanism. The Haoya Aluminum Hao Yue195 Series combines cutting-edge technology, meticulous craftsmanship, and a commitment to safety, making it the ideal choice for creating secure, stylish, and comfortable living spaces.

Haoya Aluminum 5 Track Sliding Window Features:

Minimalist design: golden ratio no, minimalist hook enterprise design

Sturdy structure: high-strength structure, large landscape enjoyment

Premium configuration: optional craft glass, flip rail, handrail

Haoya Aluminum 5 Track Sliding Window Attributes:

Opening and closing method: push-pull

Profile: 6063-T5 aluminium alloy

Wall thickness: 2.0mm, lower rail thickness 2.0mm

Track: 5-track

Standard glass: 5+14A+5

Fan material width: 60mm

Standard hardware: TAG Heuer Custom

Standard mesh: stainless steel SUS0.5MM black high-transparency anti-prying gold steel mesh
