Outswing Seamless Welded Broken Bridge Casement Windows

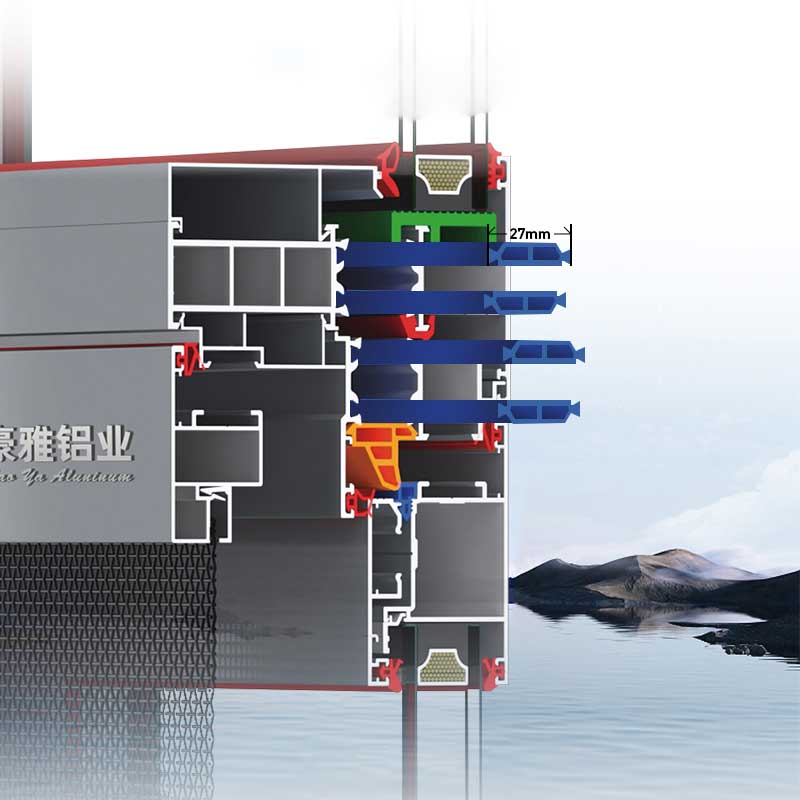

Haoya Aluminum leads Yazhi No. 2 112 series Outswing Seamless Welded Broken Bridge Casement Windows, which are made of national standard 6063-T5 native titanium-magnesium aluminum alloy aluminum. After advanced electrostatic powder or fluorocarbon spraying process, it shows excellent anti-fading, anti-corrosion, Weather resistance properties such as frost resistance. The standard profile complies with national standards, with a wall thickness of 2.0mm and a width of 112mm. It is matched with a five-cavity structure and multi-cavity insulation strips. It has strong load-bearing and pressure resistance and stable force, which significantly improves sound insulation, heat insulation, waterproofing, Windproof performance.

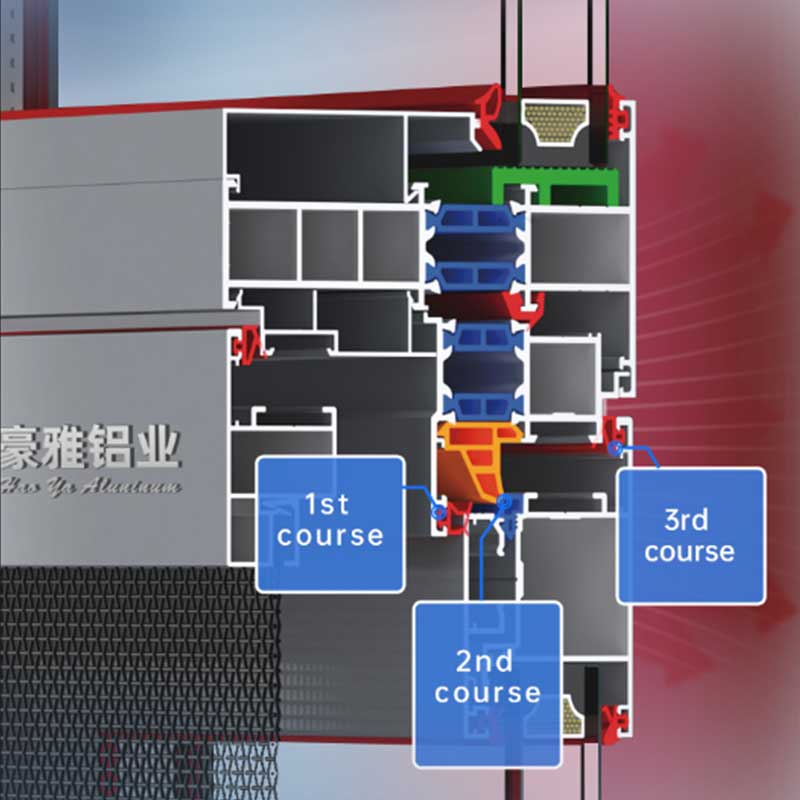

The windows adopt a three-layer sealing structure design to ensure super heat insulation and water-tightness and air-tightness, effectively cut off gas convection inside the profile, reduce heat transfer, and improve sealing, heat preservation, heat insulation and other performances. High-speed rail-grade anti-collision sealing strips form a triple airtight and watertight cavity, doubling the waterproof, drainage and airtight performance on the basis of the three seals. Equipped with high-quality EPDM high-speed rail-grade soft and hard co-extruded integrated bending foam strips to ensure weather resistance and oxidation resistance. It is difficult to distinguish the difference from ordinary PVC. Its powdery characteristics can be seen in the fire test, and it has good aging resistance and compression resistance. Deformation performance.

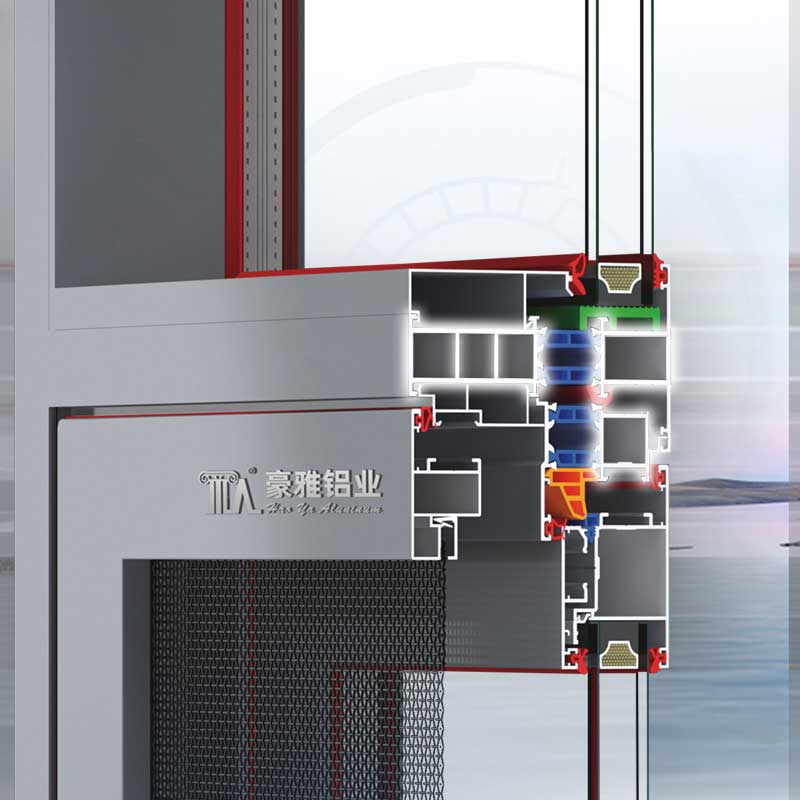

The window frame is flush with the sash, and the frame and sash are on the same plane without protruding parts, making the entire window smoother and more beautiful. Double-layer cavity PA66 high-performance insulation strips adopt advanced German precision extrusion technology and have excellent mechanical strength and weather resistance, effectively improving heat insulation, heat preservation and energy saving effects. The windows are made of high-speed rail-grade tempered glass. The standard Xinyi original 5+20A+5 double-layer 3C certified anti-collision tempered glass is injected with argon gas to ensure better sound insulation and prevent the insulated glass from fogging. Hollow aluminum strip integrated bending technology, low water vapor transmission rate rubber strip, large hollow, high sealing, effective sound insulation.

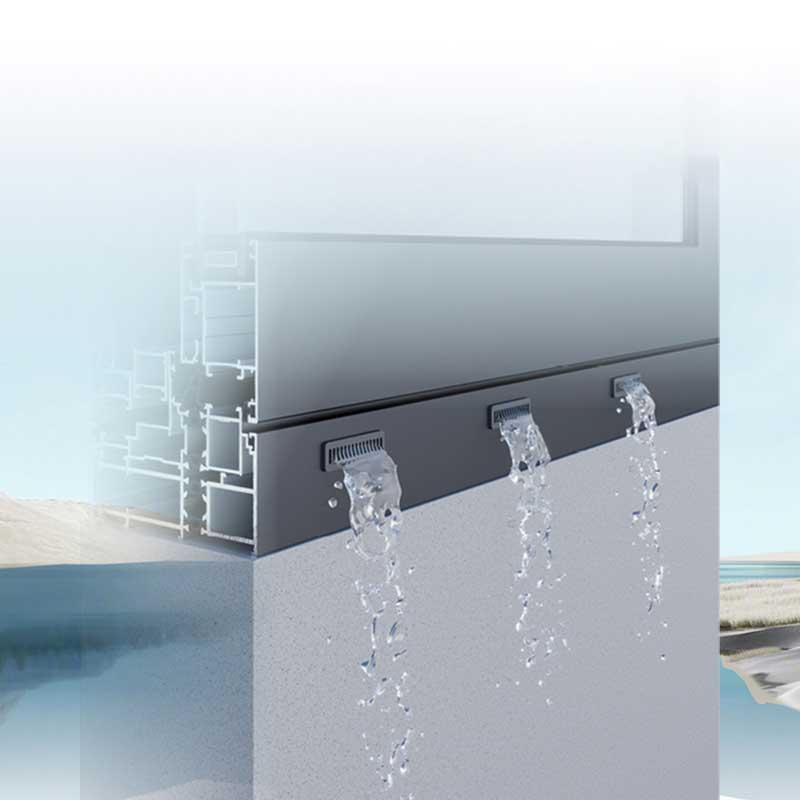

The windows are made of hollow tempered glass aluminum strips, filled with desiccant and chlorine gas, and have the characteristics of sound insulation, waterproof, anti-fog and anti-mildew. The closed crimping process has a stable and reliable structure and can be used in high-rise buildings. The frame fan adopts a vertical isotherm design and has a remarkable thermal insulation effect. The floor drain drainage system reduces rainwater backflow, and the 304 diamond mesh or high permeability mesh provides anti-theft and anti-mosquito protection. The design of the windows pays attention to details, such as German Taikhui hardware handles, heavy-duty hinges, rounded sash, etc., showing quality and safety.

Yazhi No. 2 112 Outswing Seamless Welded Broken Bridge Casement Windows have multiple opening methods, including outward opening, inward opening, inward opening and inverted opening, and outward opening and bottom hanging, to meet different needs. As China's leading window supplier, Haoya Aluminum provides high-end door and window solutions to more than 100,000 families every year, and is committed to improving living quality and creating a beautiful living experience.

Haoya Aluminum Outswing Seamless Welded Broken Bridge Casement Windows Features:

Minimalist design: narrow-edge structural design for better visual effect; seamless appearance, high-end atmosphere

Rugged structure: five-chamber design, super sound insulation

Advanced configuration: can be configured with triple-glazing system to improve thermal and acoustic insulation performance.

Haoya Aluminum Outswing Seamless Welded Broken Bridge Casement Windows attribute:

Opening and closing method: external flush opening

Profile: 6063-T5 aluminium alloy

Wall thickness: 2.0mm

Single size: W613*H1165

Maximum size: W900*H2800

Standard glass: 5+20A+5

Standard hardware: Germany TAIKHUI hardware system

Standard mesh: stainless steel SUS304 multi-mesh anti-prying safety gold steel mesh 0.5 high permeability
