Two Track Aluminium Sliding Windows With Mosquito Net

Product Description

Introducing Haoya Aluminum's Yunji Series 93 Two Track Aluminium Sliding Windows With Mosquito Net – a resilient solution against stormy weather, ensuring impeccable water resistance and featuring a high-precision window structure for enduring strength and exceptional wind resistance.

Crafted with precision and durability in mind, these windows are made from 6063 aerospace-grade silicon-titanium-magnesium aluminum alloy, with a standard profile thickness of 1.6mm and a width of 93mm. The design boasts superior resistance to wind pressure, torsion, and bending, ensuring stability and preventing deformation when facing external stresses like building wind pressure.

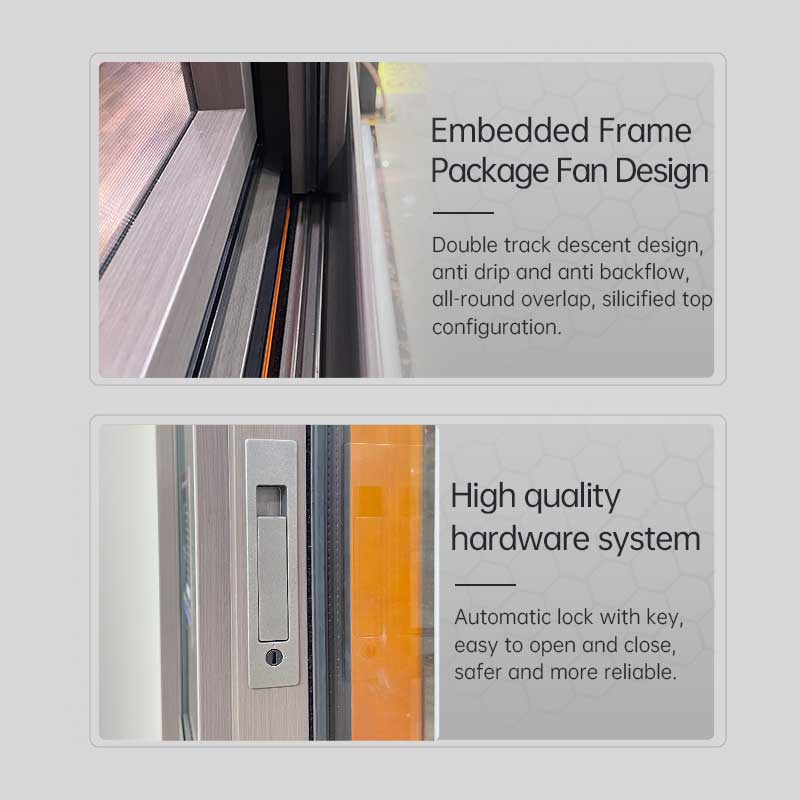

The embedded frame and sash design, along with the dual-track lowering mechanism, provide protection against water leakage and backflow. The comprehensive coverage at the lap joints, coupled with silicone wool configuration, adds an extra layer of weatherproofing. Standard glass options include 5+12A+5 for operable windows and 5+15A+5 for fixed glass, creating an effective sound insulation zone.

Equipped with double-layer 3C-certified tempered glass, featuring the superior Yixin brand, these windows isolate noise effectively, offering tranquility for your family. The safety glass is pressure-resistant, explosion-proof, and securely sealed. Rigorous testing ensures compliance with standards, with argon gas injection into the insulating glass for enhanced sound insulation and prevention of fogging.

The one-piece bending technology for the hollow aluminum bar, combined with low water vapor permeability butyl rubber and dual-component neutral silicone rubber, achieves a large hollow space, high sealing, and effective sound insulation. The aluminum bar in the hollow toughened glass is filled with desiccant and charged with argon gas, providing sound insulation, waterproofing, anti-fogging, and anti-mold properties.

Featuring a narrow frame design with a visible face of 25.5mm for the screen, these windows offer a large opening for enhanced transparency and lighting, redefining visual and tactile experiences. The four-sided double-layer sealed wool strip provides protection against dust, wind, sand, and mosquitoes.

The use of high-grade EPDM rubber strips, triple ethylene propylene diene monomer (EPDM) high-grade soft and hard co-extruded foam rubber strips, and isothermal surface design contribute to energy efficiency. The standard nylon thermal barrier and advanced German precision extrusion technology ensure excellent mechanical strength, high-temperature resistance, UV aging resistance, and resistance to acid and alkali corrosion.

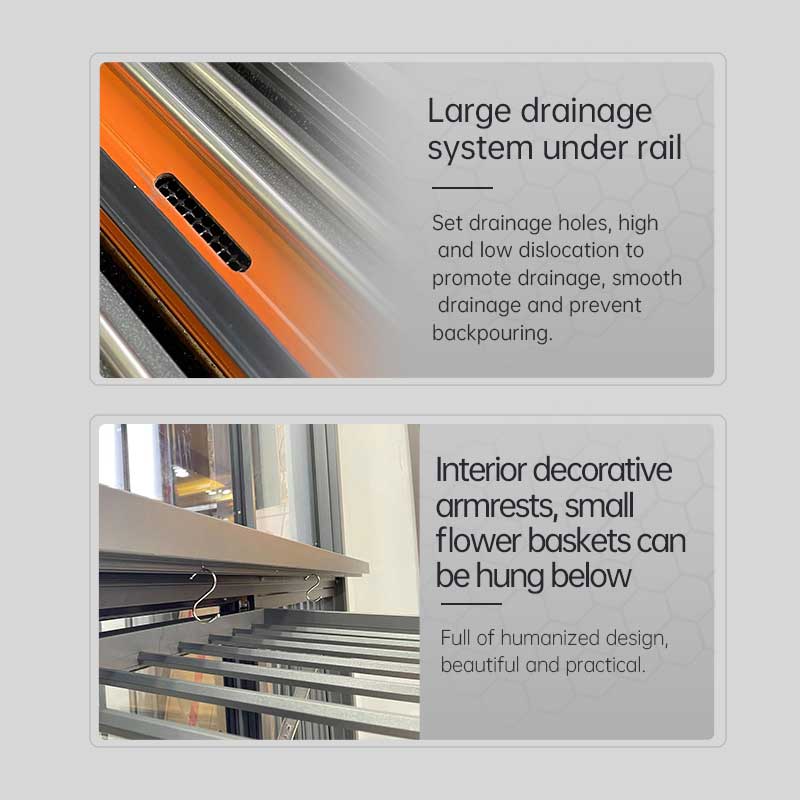

Adding a touch of convenience and aesthetics, the windows include interior decorative handles and a lower water-blocking edge. The large drainage system with a 2.5mm thick lower track prevents water leakage and backflow, with drainage holes for smooth water discharge.

The dual-wheel design minimizes the risk of derailment, while the protective railing can be opened for drying functionality. The high-quality hardware system, featuring automatic locking with keys, ensures convenient and secure operation.

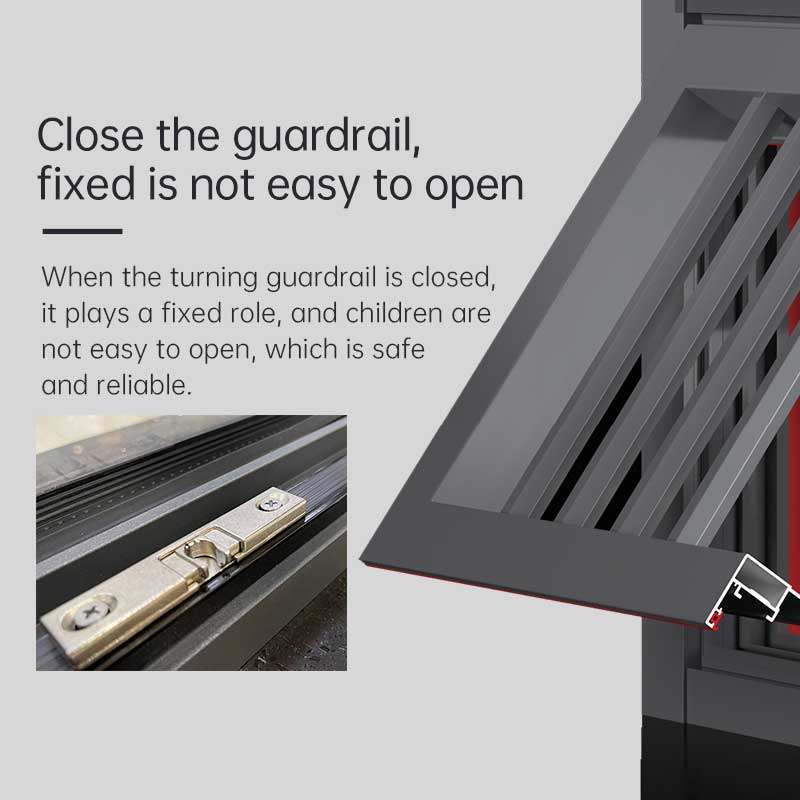

Safety is a top priority with the closed guardrail providing additional security, and when flipped closed, it acts as a fixed barrier, making it difficult for children to open. The structural safety pressure line can withstand strong wind pressure, ensuring safety against wind pressure.

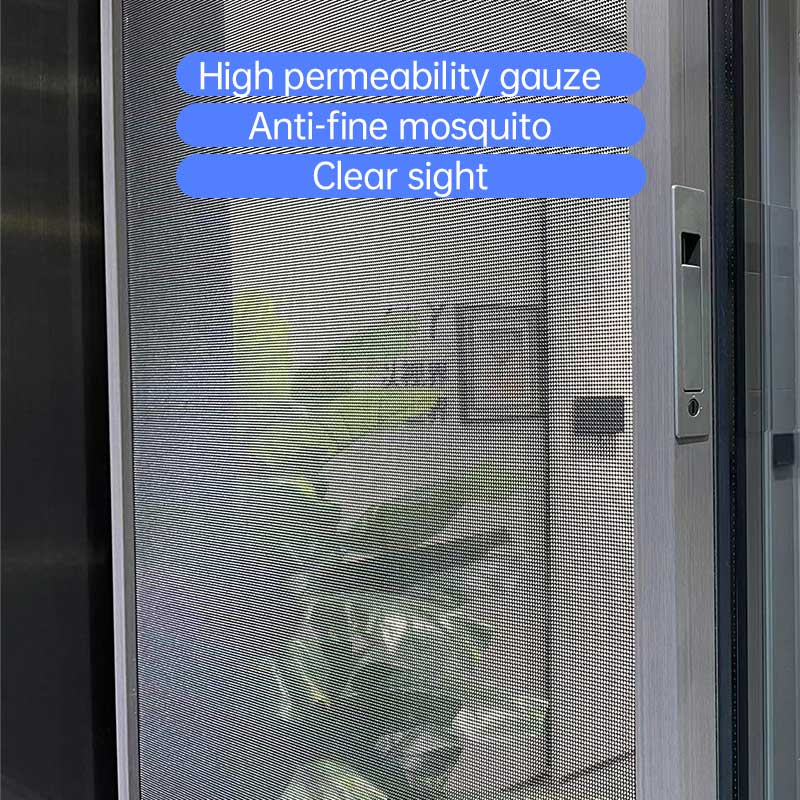

Options for the mesh include 304 stainless steel diamond mesh or high-transparency mesh, providing anti-corrosion, anti-theft, and anti-mosquito features. Alternatively, a 0.5mm thick high-transparency semi-hidden diamond mesh screen provides theft prevention.

With over 18 years of industry expertise, Haoya Aluminum, backed by 160+ patented technologies and a dedicated team of 30+ researchers, continues to deliver award-winning products. Our commitment to quality is further reinforced with insurance coverage from China Ping An. Leveraging robust production capabilities, Haoya Aluminum remains dedicated to providing consumers with superior doors and windows, contributing to a luxurious and refined living experience.
