Broken Bridge Sliding Windows

Haoya Aluminum 123 series Broken Bridge Sliding Windows provide unlimited visibility and limitless sound insulation.Experience the epitome of quality and innovation with Haoya Aluminum – where cutting-edge technology, precision engineering, and aesthetic design converge to redefine excellence in doors and windows for your discerning projects.

Model:Yue Hao 123

Send Inquiry

Product Description

Introducing Haoya Aluminum's Yuehao 123 Series Broken Bridge Sliding Windows – a fortress against typhoons, powerful storms, and gusty winds. With anti-derailment features, these windows ensure a secure fit between the sash and upper/lower tracks, preventing detachment and cushioning the impact during opening and closing for long-lasting durability.

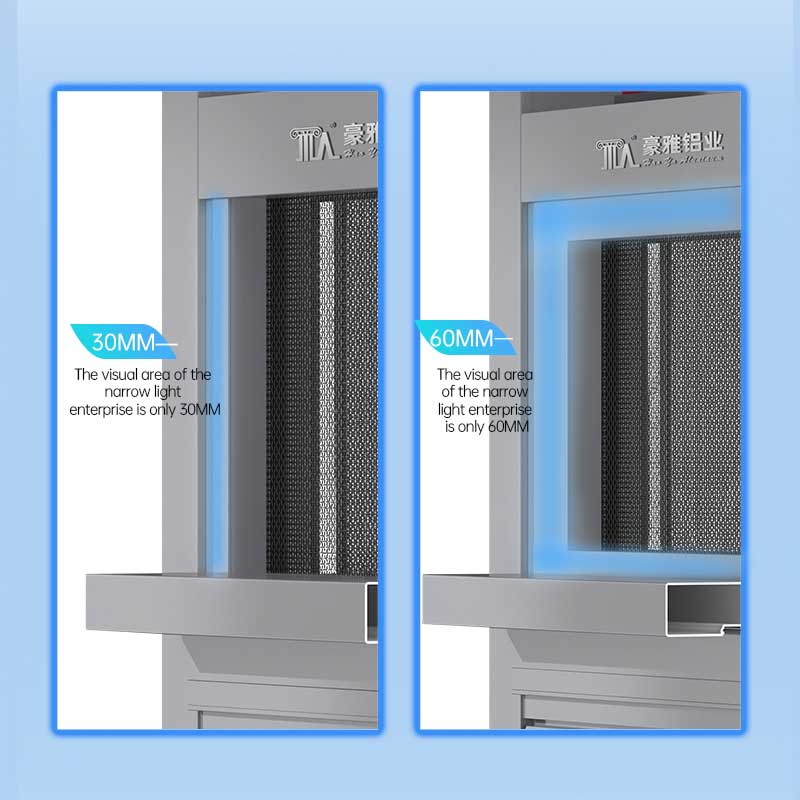

Constructed with precision and strength in mind, these windows feature aerospace-grade 6063 silicon-titanium-magnesium aluminum alloy, adhering to the latest national standards with a 2.0mm profile thickness and 123mm width. Choose from two specifications – 30 or 60 sashes. The concealed design allows for a sleek visual profile of 30mm, coupled with hidden locks and ultra-narrow frames, offering 75% ventilation and optimal lighting, providing an expansive view.

The embedded frame and sash design includes standard 5+13A+5 operable glass and 5+15A+5 fixed glass, along with black hollow space logo branding. The double-layer 3C-certified tempered glass, utilizing the high-quality Yixin brand, effectively isolates noise, ensuring peace for your family. Safety glass, pressure resistance, and airtight sealing are guaranteed, with argon gas injected into the insulating glass for enhanced soundproofing and fog prevention.

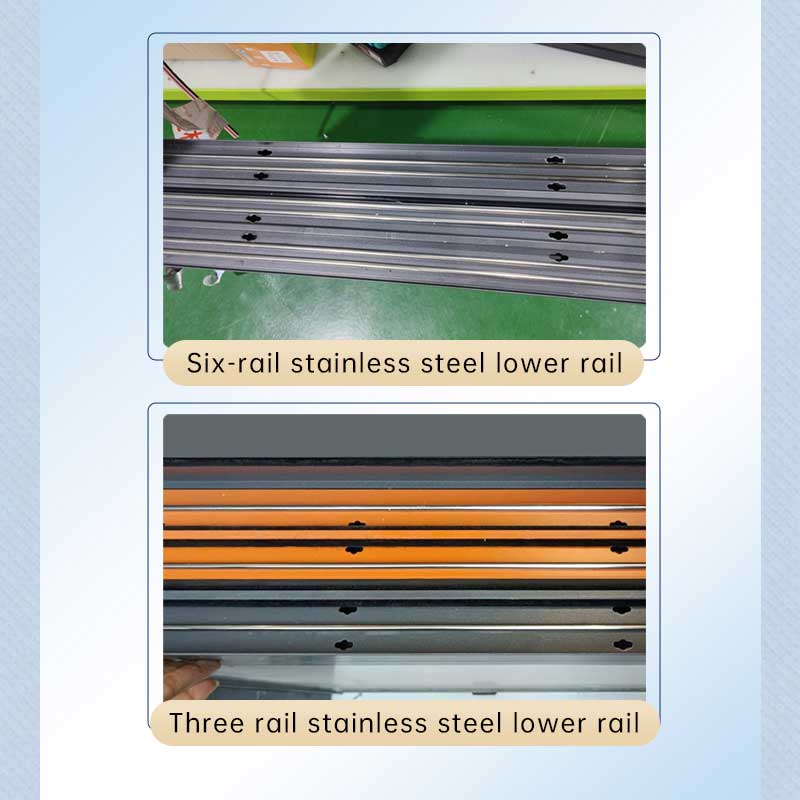

The hollow aluminum bar, one-piece bending technology, low water vapor permeability butyl rubber, and dual-component neutral silicone rubber contribute to effective sound insulation. The narrow side sliding design, featuring dual rollers for better load-bearing capacity, is embedded with stainless steel bars in the track, providing stability and smooth operation.

The 3.0mm thick lower track ensures smooth and silent sliding, while the additional water-blocking edge enhances waterproofing. Anti-derailment blocks on the upper and lower sashes prevent detachment, ensuring a secure fit. The drainage system includes visible and concealed outlets, safeguarding against heavy rain with a sloping hidden drainage structure.

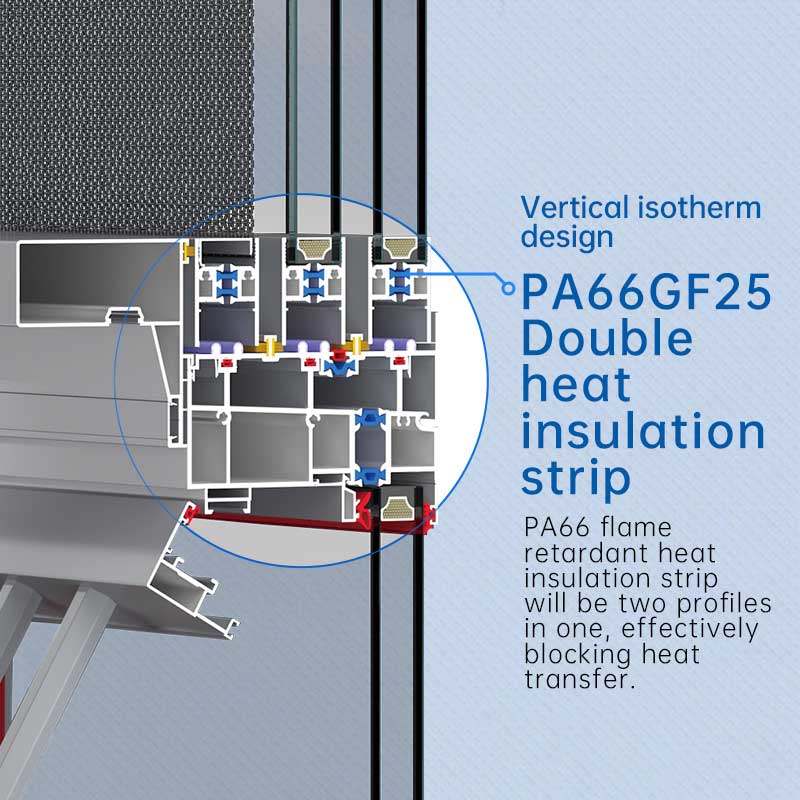

Multiple layers of sealing wool strips reduce air convection in the track, improving overall sealing performance against dust, wind, sand, and mosquitoes. High-grade EPDM rubber strips, triple ethylene propylene diene monomer (EPDM) foam rubber strips, and isothermal surface design enhance water resistance and aging resistance.

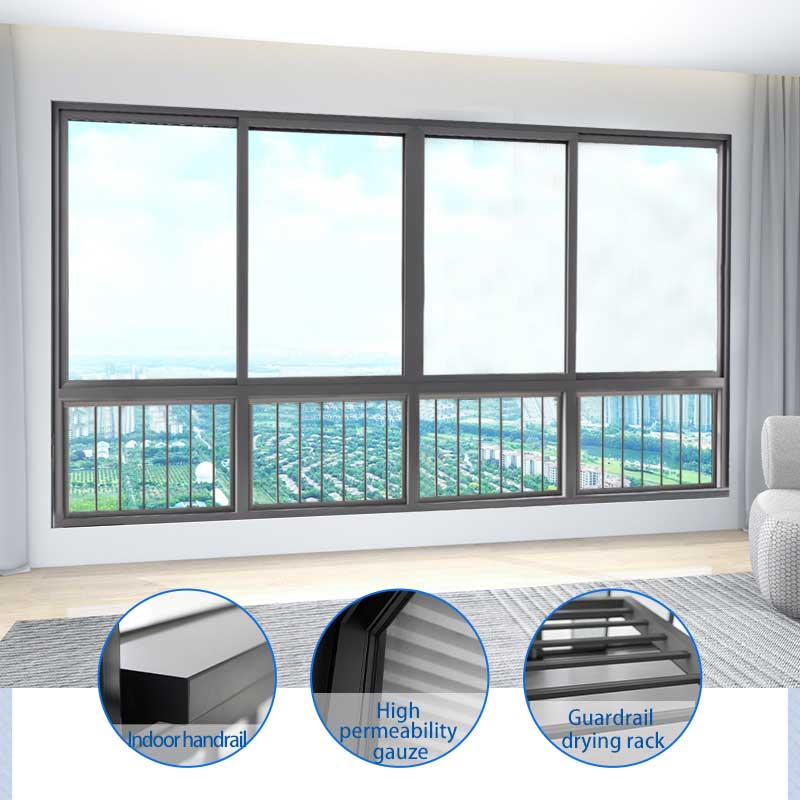

The design incorporates a concealed handle for a minimalist look and caters to daily drying needs. The addition of an interior handle and optional invisible high-transparency mesh provide versatility. The 2-in-1 sash design includes anti-derailment and anti-collision features, ensuring longevity. The safety features extend to anti-fall protection, an openable guardrail, and a child-safe flip-lock mechanism.

Standard high-transparency mesh offers corrosion resistance, durability, and effective mosquito prevention. The structural safety pressure line withstands strong wind pressure, making it five times stronger than ordinary 50 windows. With over 18 years of industry expertise, Haoya Aluminum stands as a symbol of quality, boasting 160+ patented technologies and a dedicated team of 30+ researchers. Backed by China Ping An insurance, Haoya Aluminum remains committed to providing consumers with premium living solutions.

Haoya Aluminum Broken Bridge Sliding Windows Features:

Minimalist design: 30 full hidden fan design visual hidden or 60 fan design high-end atmosphere

Structural robustness: anti-detracking and typhoon-resistant design

Premium configuration: optional flip-up guardrail and handrail

Haoya Aluminum Broken Bridge Sliding Windows Attributes:

Opening and closing method: push-pull

Profile: 6063-T5 aluminium alloy

Wall thickness: 2.0mm, lower rail thickness 3.0mm

Rail: Three rails

Standard glass: glass fan 5+13A+5; solid glass 5+15A+5

Standard hardware: TAG Heuer Custom

Standard mesh: stainless steel SUS high-density anti-prying high-transparency 0.5 gold steel mesh
